MicMix Master Room Studio B Schematics

Post by mediatechnology » Sun Apr 18, 2010 3:56 pm

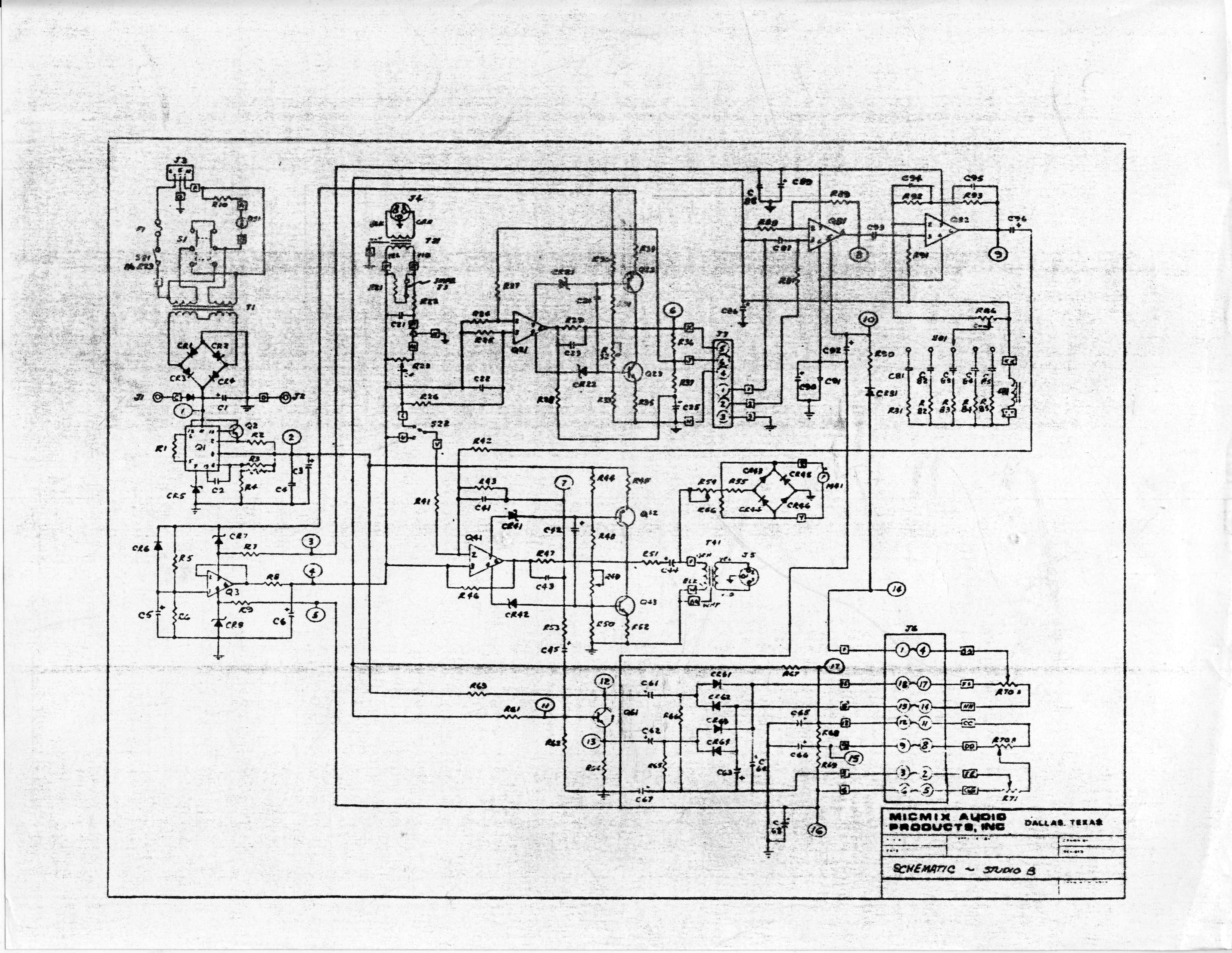

I also found the studio B schematic. For those of you that might be troubleshooting a Studio B reverb and need the component values I'd look at the Studio C parts list. I believe they were almost identical.


Large format here: https://www.ka-electronics.com/images/j ... ematic.JPG (4.5 MB)
https://ka-electronics.com
