Valley People TA-101 TA-102 TA-103 Documents

Post by mediatechnology » Sun May 10, 2009 1:20 pm

Valley People TA-103 Application Note

https://www.ka-electronics.com/images/p ... TA-103.pdf

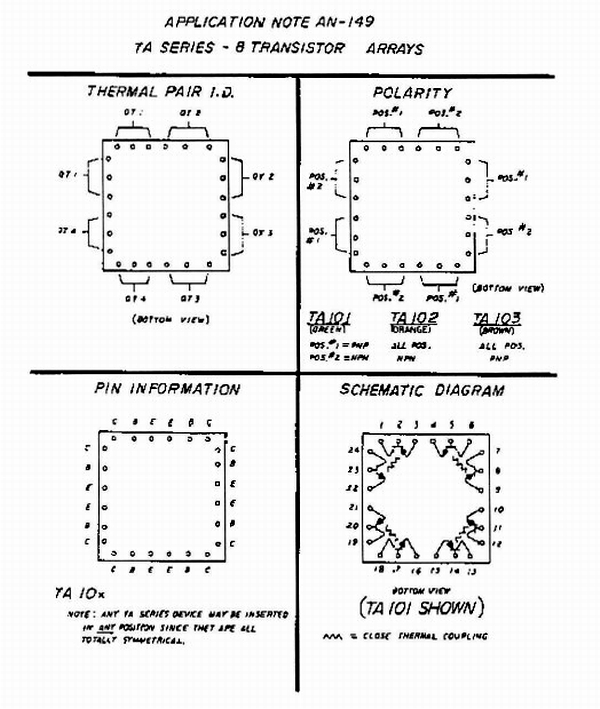

Valley People TA-101 TA-102 TA-103 Pinout

Note the thermal coupling of the transistor pairs.

TA-101 4 NPN 4 PNP
TA-102 8 NPN
TA-103 8 PNP
